Aquasafe Lockers

Launch Design Studio


  • Available with Aluminium or 3mm Solid Grade Laminate carcass
  • Hardwearing and water resistant Solid Grade Laminate doors
  • Pre-assembled for ease of installation
  • Size and configuration flexibility
  • Various lock options
  • Available in over 30 laminate colours

Special Features:

  • Braille number plate option
  • Sport England compliant
  • Compatible with Aquabench seating
  • Complements cubicles

With our strong and sturdy Aquasafe Lockers you have the choice of a Solid Grade Laminate or Aluminium carcass. The locker framework extrusions are constructed from Satin Anodised Aluminium whilst the hinges are constructed from robust Stainless Steel.

Solid Grade Laminate lockers are available in a standard width of 305mm and 405mm however flexible size and configuration options are available upon request. Aluminium lockers are available in a standard width of 308mm and 408mm. Aquasafe lockers offer a 510mm depth in Solid Grade Laminate and a 505mm depth in Aluminium, both with a carcass height of 1800mm. Typical overall height of 1900mm is achieved when mounted on a 450mm bench or 100mm Solid Grade Laminate plinth.

Solid Grade Laminate Aquasafe lockers have 13mm Solid Grade Laminate shelves in Mercury that allow total sizing flexibility, whilst Aluminium lockers have light-grey injection-moulded shelves. Locker doors are supplied in robust 13mm Solid Grade Laminate with the core polished to a smooth profile and supplied with double coat hook for 1 tier, 2 tier and ‘Z’ shaped lockers. Recessed Stainless Steel door hinges provide a built-in ‘stop’ feature, limiting the door opening to 105º. One hinge per door is sprung.

There is a choice of lock options, including Hasp lock for the user’s own padlock, Cam-lock, Coin return, Coin retain and Digi lock. Framework is supplied in powder coated white, as standard

Aquasafe lockers are supplied with self-assembly 13mm Solid Grade plinths. These allow for simple site levelling during installation and provide a firm base onto which a skirting/floor finish by others can be applied. Alternatively the plinth fascia can be supplied to match locker doors.

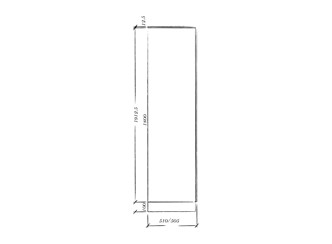

Locker Profile

Locker Profile

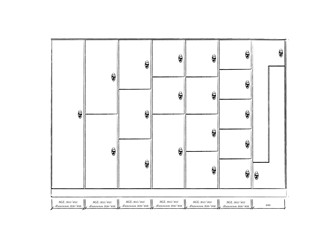

Locker Configuration

Locker Configuration

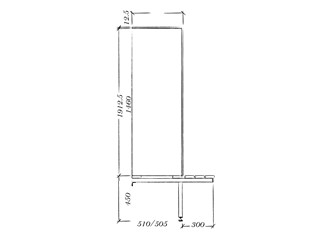

Locker on bench profile

Locker on bench profilee

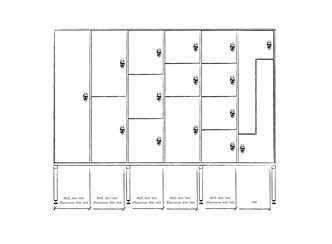

Locker on bench configurations

Locker on bench configurations

Technical Documents

Pdf Brochure

Pdf Specifications
